Desktop SCARA Robot Arm
4-axis SCARA arm with ESP32 GCode controller — the same toolchain as our Delta robot, with a larger reach.
A compact 4-axis SCARA arm for pick-and-place, drawing, dispensing and teaching. ESP32 controller with open GCode firmware, closed-loop steppers on the shoulder and elbow, and interchangeable end effectors.
What you get
- SCARA arm (pre-assembled and calibrated)
- ESP32-S3 controller in enclosure (firmware pre-flashed)
- 24 V 120 W power adapter (US/EU/UK/AU plugs)
- Two-finger servo gripper
- USB-C cable, emergency-stop button
- Desk mounting plate + M5 hardware
Where it fits
A delta robot is fast over a small circle; a SCARA covers a wider, flat working area with better stiffness in the horizontal plane. That makes this arm a good match for sorting parts across a whole desk, pen plotting, glue dispensing and teaching kinematics — and it speaks the same GCode dialect as our Delta robot, so programs and vision code carry over.
What's inside
- Shoulder and elbow — NEMA17 closed-loop steppers with 20:1 harmonic-style reducers. Encoders catch missed steps and correct them.
- Z axis — lead-screw with 100 mm travel and a homing switch.
- Wrist (R axis) — ±180° rotation for orienting parts.
- Controller — ESP32 with pre-flashed GCode firmware, USB serial at 115200 baud, plus Wi-Fi for the optional web jog panel.
Software
- Send GCode from any serial terminal, or use the Python helper library.
- Inverse kinematics run on the controller; you command X/Y/Z/R in millimetres and degrees.
- The Education Bundle includes lesson plans covering forward/inverse kinematics, trajectory planning and simple vision-guided picking.
Technical specifications

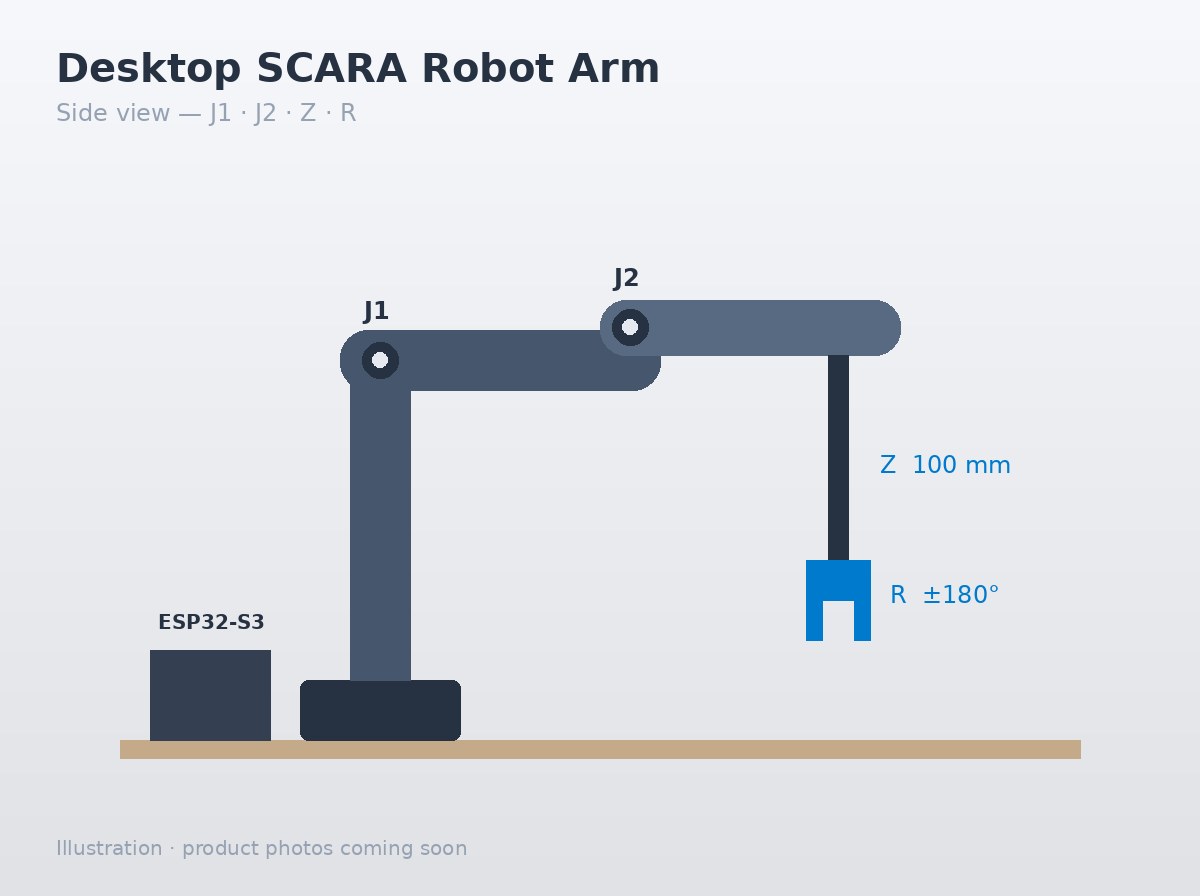

| Type | SCARA, 4-DOF (J1, J2, Z, R) |
|---|---|
| Reach | 280 mm (J1 120 mm + J2 160 mm) |
| Z travel | 100 mm |
| R rotation | ±180° |
| Repeatability | ±0.05 mm (typical) |
| Payload | 500 g (rated), 800 g (max) |
| Max joint speed | 180°/s (J1, J2) |
| Controller | ESP32-S3 (240 MHz dual-core) |
|---|---|
| Motors | 2× NEMA17 closed-loop, 2× NEMA14 |
| Communication | USB serial (115200), Wi-Fi web panel |
| Firmware | GCode (G0/G1/G28, M-codes for I/O) |
| I/O | 4 digital out (24 V), 4 digital in, 1 PWM |
| Power | 24 V DC, 120 W adapter |
| Base footprint | 160 × 160 mm |
|---|---|
| Height | 390 mm |
| Arm weight | 3.6 kg |
Documentation All 3 guides →
Quick Start
Quick Start
Unbox, mount and power up the Desktop SCARA arm, home all four axes and send your first GCode move in about 20 minutes.
Programming
Programming Guide
Coordinate frame, supported GCode and M-codes, speed and acceleration settings, Python helper library and a complete pi…
Troubleshooting
Troubleshooting
Fixes for homing failures, motors that stay disabled, lost position, gripper and serial connection problems on the Desk…
Downloads
| BOM | Bill of materials (Desktop SCARA Robot Arm) v1.0 |
|---|
FAQ
Can I reuse my Delta robot programs?
Mostly. Both robots use the same GCode dialect and serial protocol. Coordinates are in millimetres in each robot's own frame, so you will need to re-teach pick positions, but the host software and vision pipeline work unchanged.
Delta or SCARA — which should I buy?
Choose the Delta for fast pick-and-place over a small conveyor area. Choose the SCARA for a larger flat workspace, drawing/dispensing, or if you need wrist rotation.
Is it safe to use in a classroom?
It is a low-power desktop arm with current-limited motors and an emergency-stop button, but it is still a moving machine: supervise students and keep hands out of the working area while it runs.
Do I need to calibrate it?
It ships calibrated. Homing runs automatically on power-up; a one-minute re-calibration routine is included if you remount the arm.
Warranty
12-month limited warranty covering manufacturing defects. Consumables (suction cups, belts) and damage from modification are excluded.
Returns
Returns. You may return an item within 7 days of delivery for a refund.
- The item must be unused, complete, and in its original packaging.
- Return shipping is paid by the buyer. Original outbound shipping is non-refundable.
- Contact service@nenpower.com before shipping anything back; returns sent without prior notice cannot be processed.
- Refunds are issued to the original payment method within 5 business days of the returned item arriving and passing inspection.
- Items damaged in transit or dead on arrival are covered by warranty, not by this policy — we cover the shipping in those cases.
EU, EEA and UK consumers also have a statutory right to withdraw within 14 days of delivery without giving a reason — see our Terms of Sale. Your statutory rights are not affected.
