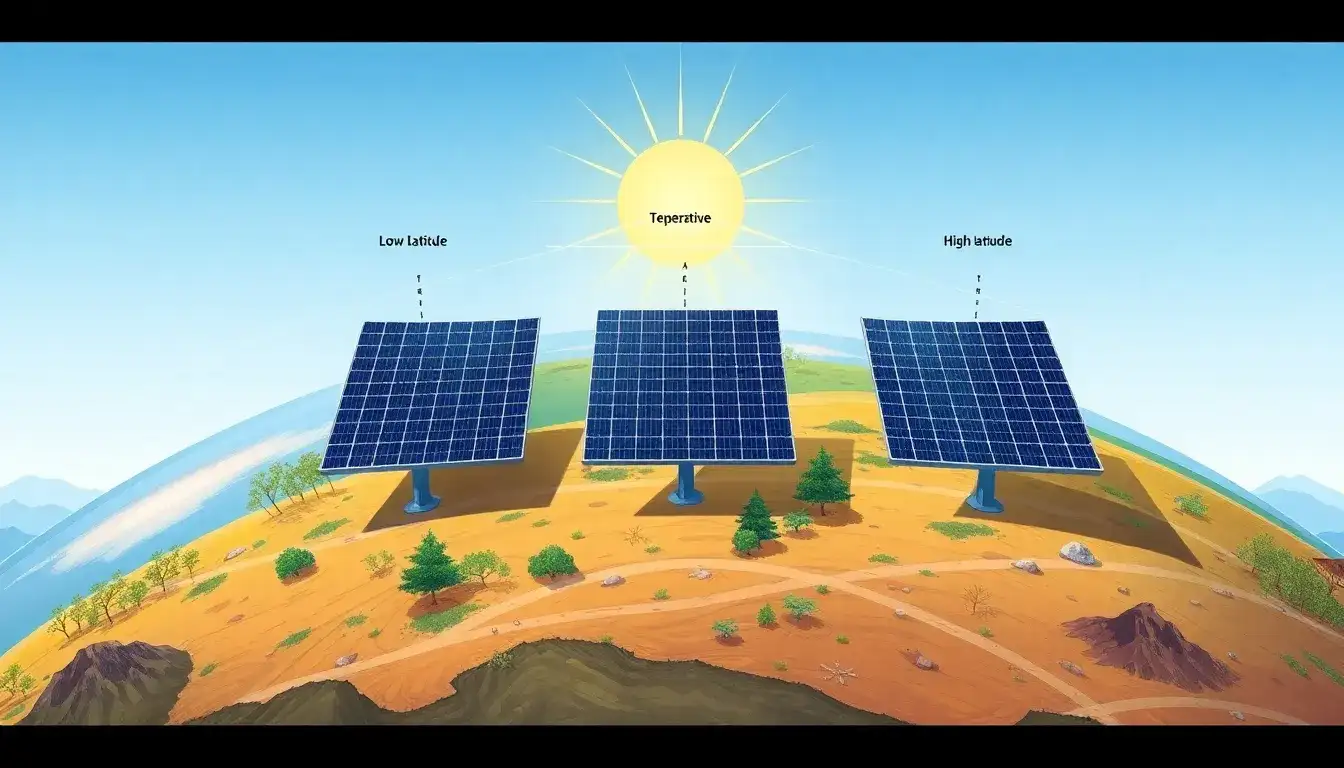

The latitude of a location primarily determines the optimal tilt angle for solar panels, while the direction (azimuth angle) is determined by the hemisphere. Here’s how latitude impacts solar panel orientation:
Direction (Azimuth Angle)
- Northern Hemisphere: Panels should face true south to maximize sunlight exposure.
- Southern Hemisphere: Panels should face true north for the same reason.
- Note: “True” south/north differs from magnetic compass directions. Correct for magnetic declination (varies by location).
Tilt Angle (Elevation)
Latitude is the baseline for setting panel tilt:
- General rule: Tilt panels at an angle equal to your latitude (e.g., 34° in Los Angeles, 41° in NYC).
- Seasonal adjustments:
- Winter: Latitude + 15° to capture low-hanging sun.
- Summer: Latitude – 15° to align with higher sun.
- Spring/Fall: Latitude ± 0°.
- Exceptions:
- Near the equator (low latitude), panels perform well at flatter angles (10–20°).
- At higher latitudes (e.g., 45–50°), steeper angles (~40–50°) are ideal.
Why Latitude Matters
- Sun path: The sun’s elevation varies with latitude. Lower latitudes (closer to the equator) experience higher solar angles, while higher latitudes see lower angles.
- Cloud cover: In regions with frequent clouds, slightly flatter angles (~latitude – 5–10°) can capture diffuse sunlight better.
Efficiency Impact
- Direction priority: South-facing (northern hemisphere) panels can produce ~30% more energy than non-optimal orientations.
- Tilt vs. latitude mismatch: A 20° deviation from the optimal tilt reduces output by 7–9% (e.g., Portland, OR, loses more than Phoenix, AZ).
For precise calculations, tools like PVWatts or Aurora Solar factor in latitude, local weather, and shading.
